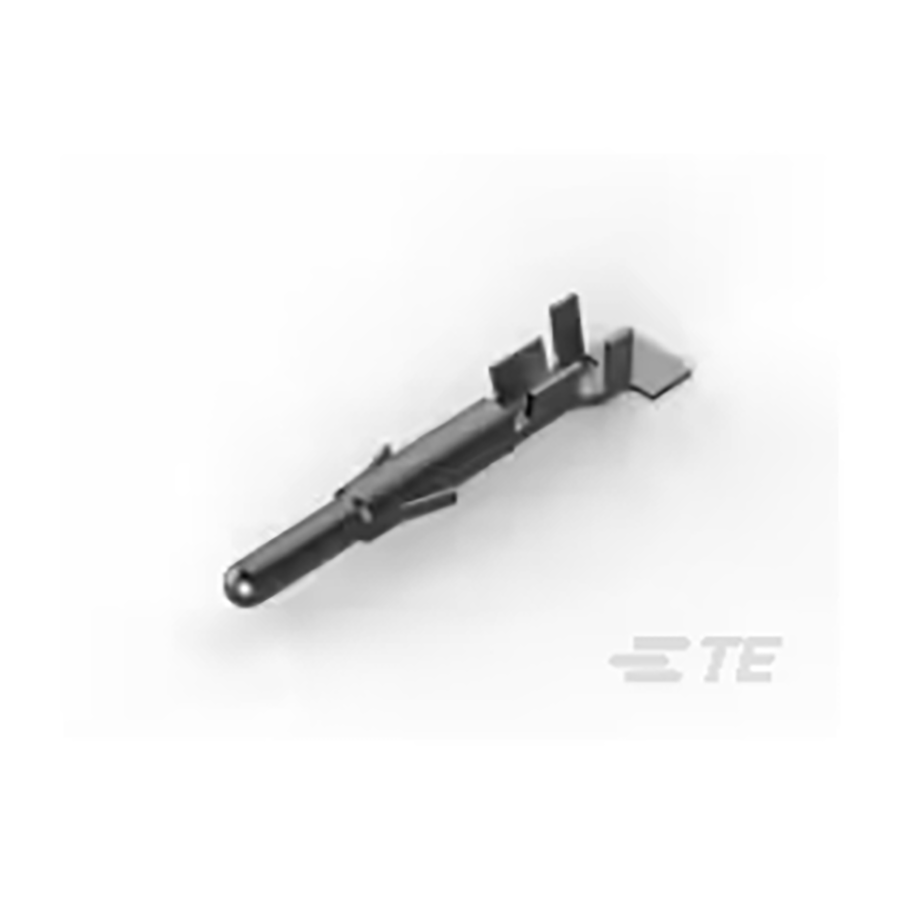

350654-1
Manufacturer:
TE Connectivity
Mfr.Part #:
350654-1
Datasheet:
Description:
IC and Component Sockets Cable Pin
| Parameter | Value |
|---|---|
| Length | 22.86 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 4.32 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Pre-Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Number of Terminals | 1 |
| Current Rating | 19 A |
| Max Current Rating | 19 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Pin (Male) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Pin |
| Wire/Cable Gauge | 20 AWG to 14 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Number of Ports | 1 |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 19 A |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 14 AWG |
| Insulation Diameter | 3.302 mm |
| Contact Gender | Male |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 2182
Distributors
pcbx
pcbxUnit Price$0.08544
Ext.Price$0.08544
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08544 | $0.08544 |
| 10 | $0.04272 | $0.42720 |
| 50 | $0.03814 | $1.90700 |
| 100 | $0.03405 | $3.40500 |
| 500 | $0.02975 | $14.87500 |
| 1000 | $0.02600 | $26.00000 |
| 3000 | $0.02473 | $74.19000 |
| 5000 | $0.02352 | $117.60000 |
| 10000 | $0.02215 | $221.50000 |
